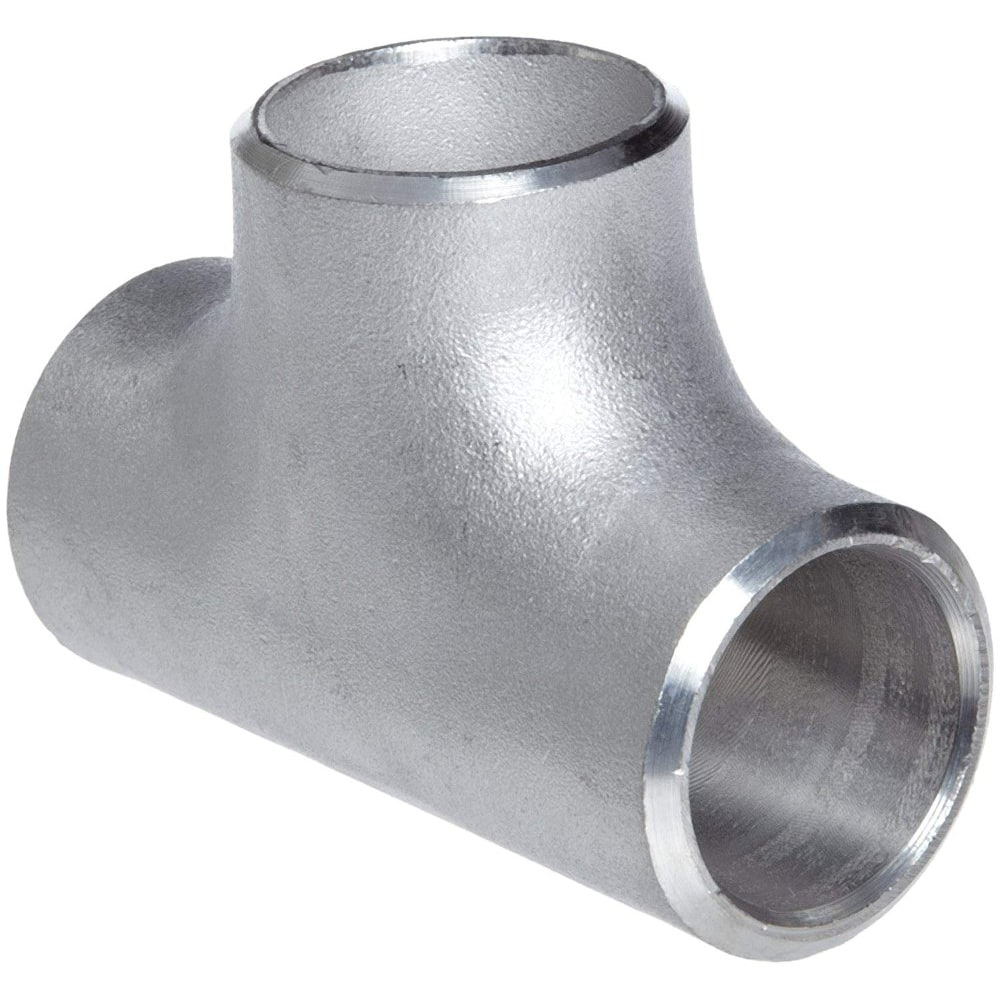

Tee

Tee

90° branch, equal (run = branch) or reducing (smaller branch).

Ø21.3–609.6 mm
Ask about this product

Configure & add to quote

Quantity

Specifications

Range

Outside diameter
Ø21.3–609.6 mm

Standards

DIN 2615ANSI B16.9GOST 17376

Materials

P235GHP255GH16Mo313CrMo4-510CrMo9-10

Technical reference

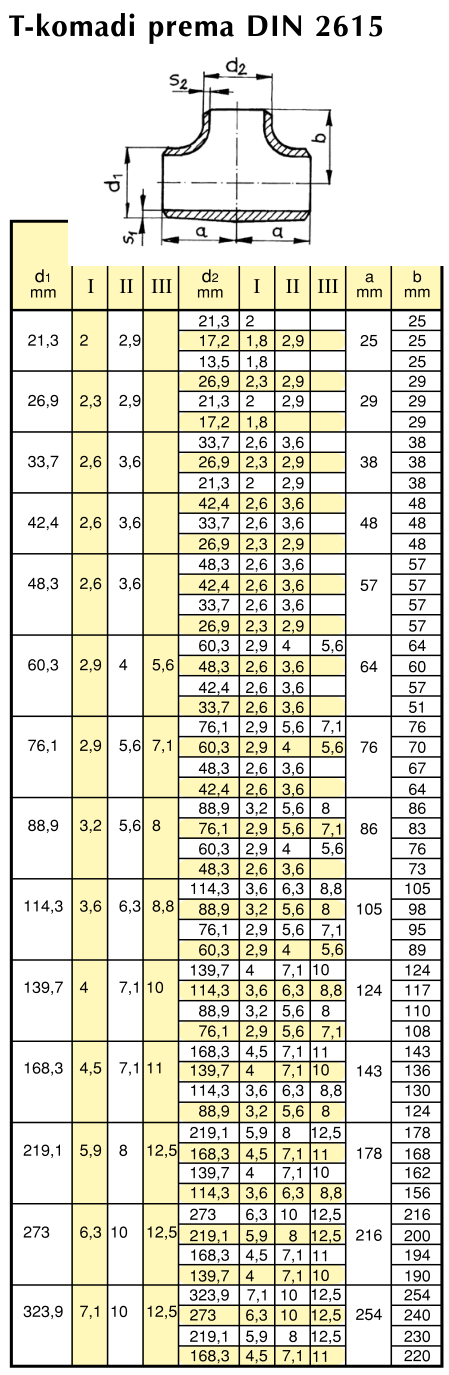

Tee dimensions, DIN 2615 (equal & reducing)

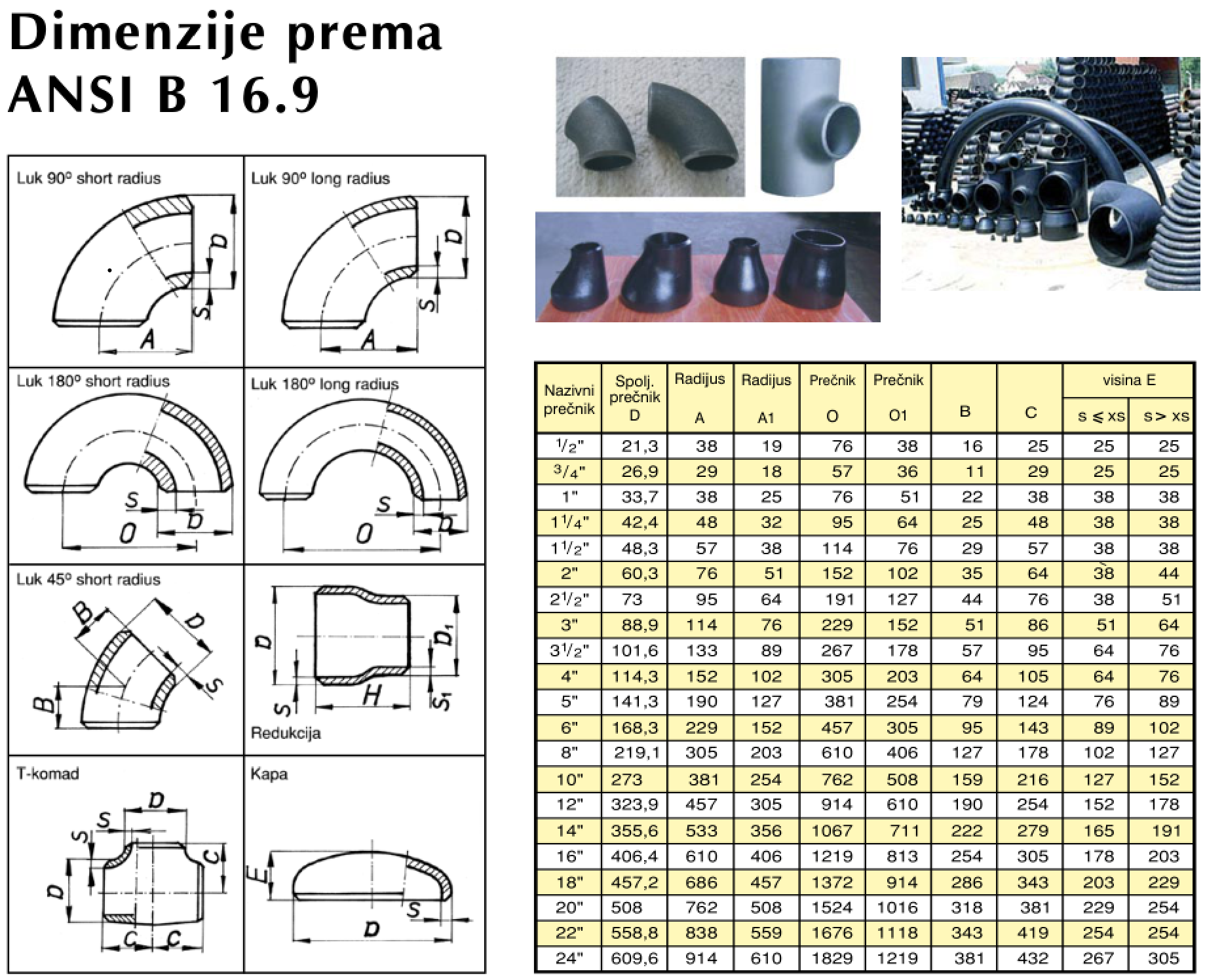

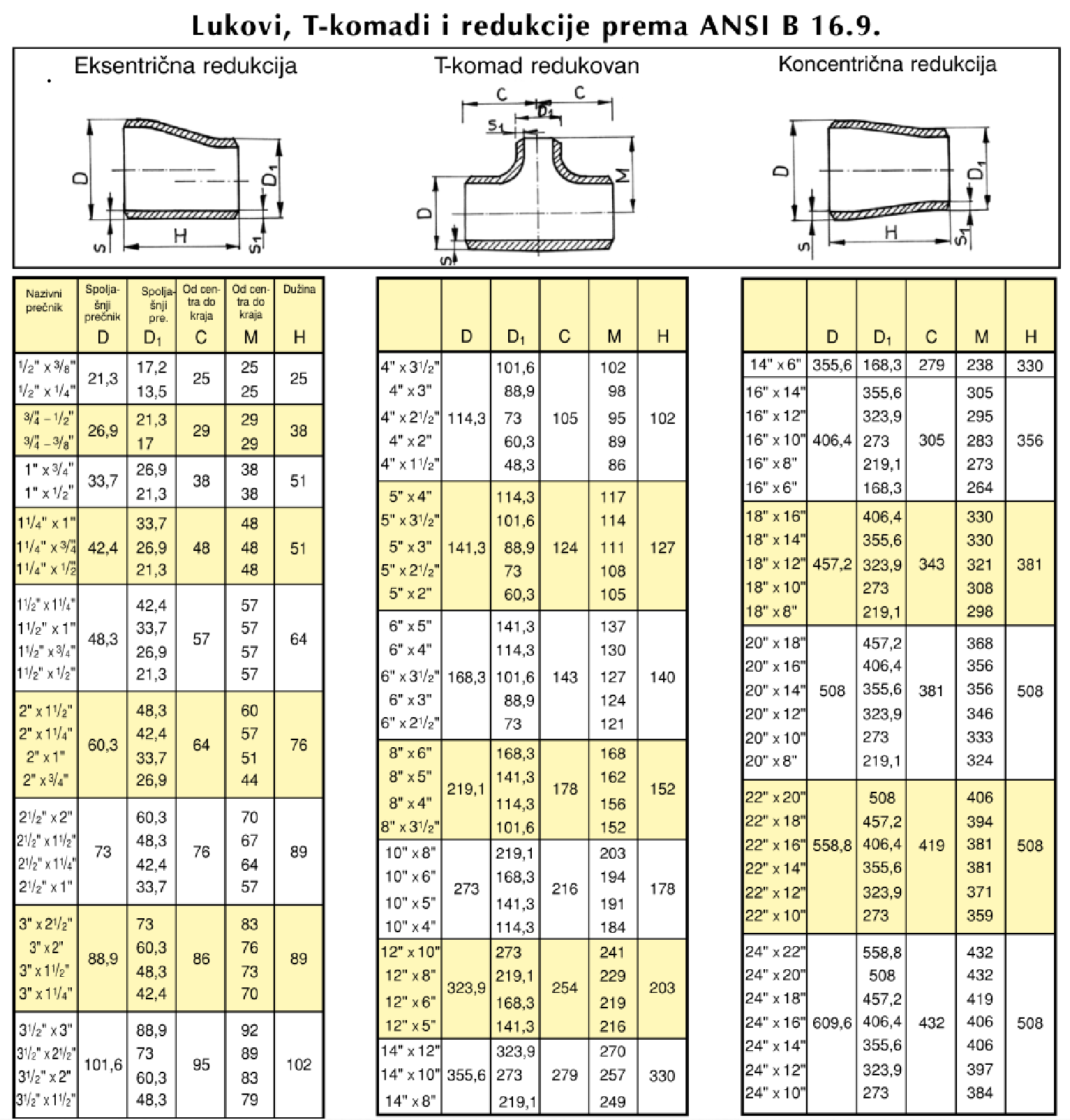

Reducer & tee dimensions, ANSI B16.9 + tolerances

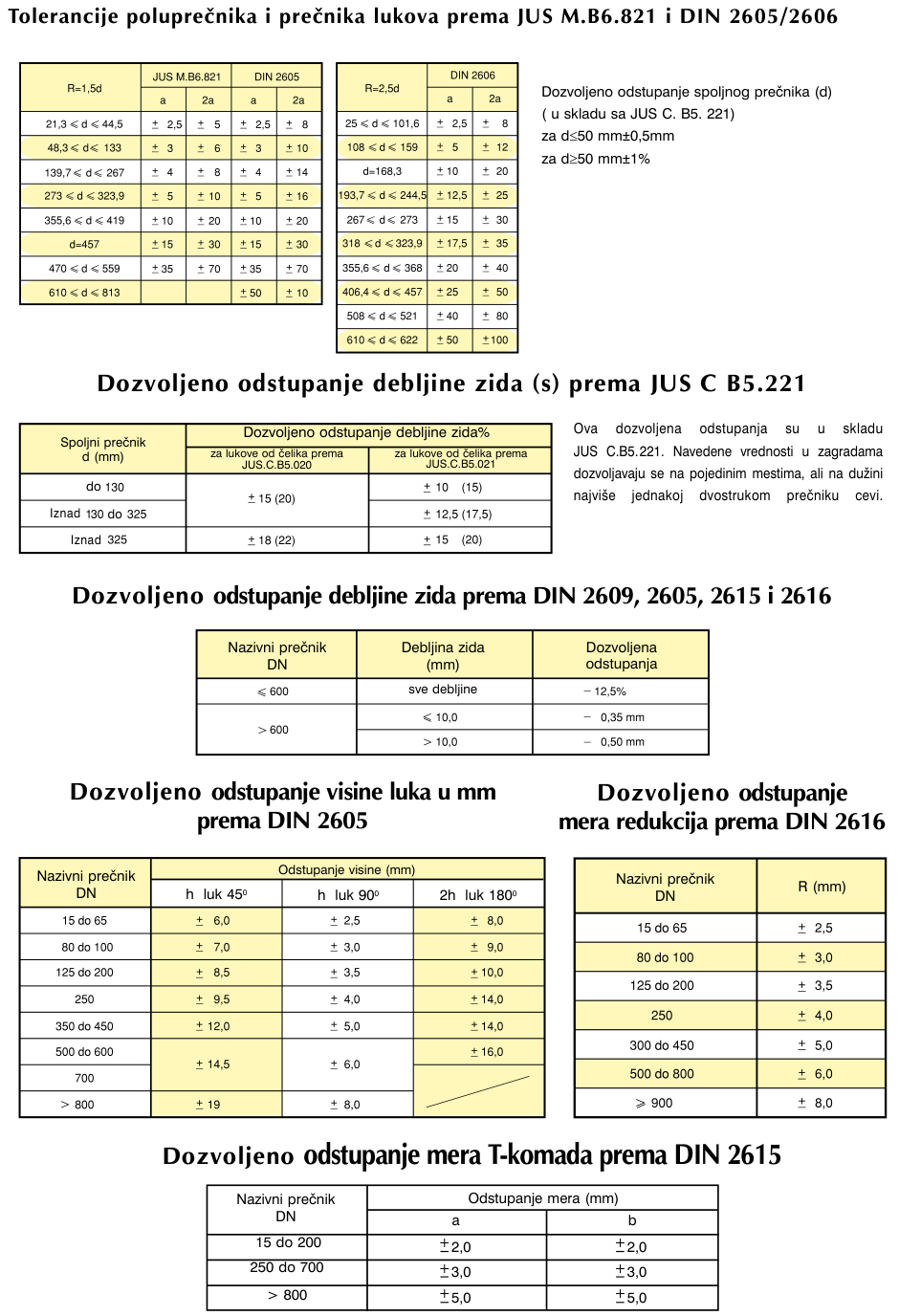

Permitted tolerances, radius, diameter & wall (JUS / DIN 2605/2606/2609)
