Single-hinged

Allows angular movement in a single plane.

DN 40–1200PN 3.5–40 bar

Configure & add to quote

Nominal diameter (DN)(mm) *Pressure (PN)(bar) *Working temp. min(°C)Working temp. max(°C)Flow mediumFlow velocity(m/s)Angular movement (±)(°)MaterialEnd connection

Quantity

Specifications

Range

Nominal diameter: DN 40–1200 mm
Nominal pressure: PN 3.5–40 bar

Standards

PED 2014/68/EU

Materials

1.45411.44011.45711.43011.4580

Technical reference

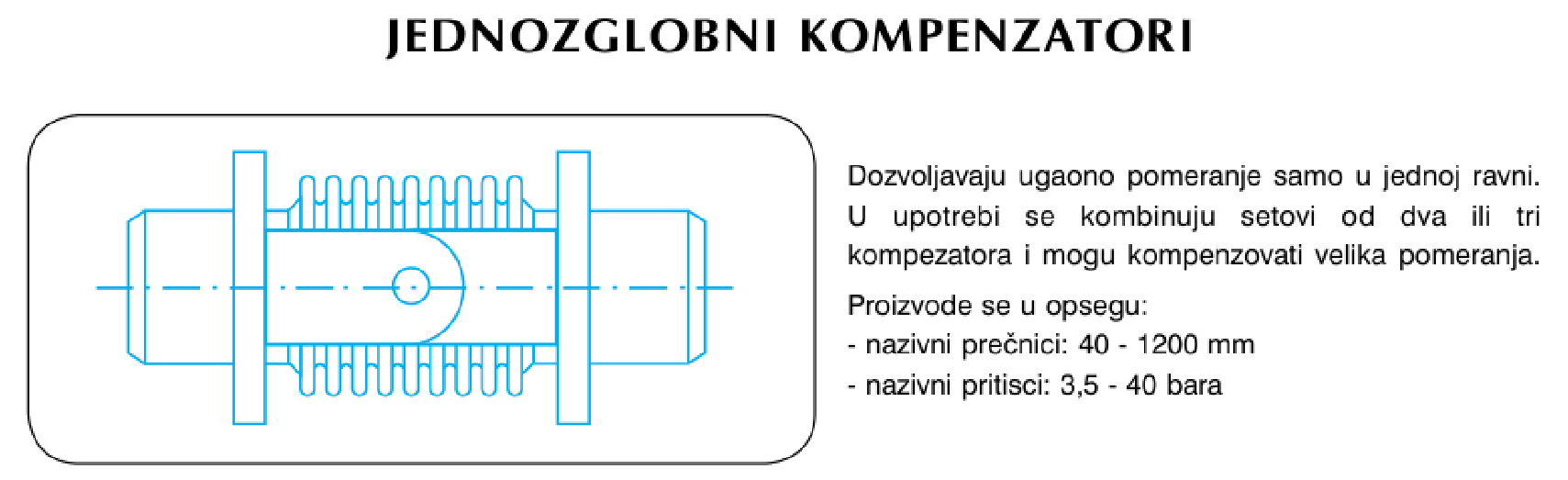

Single-hinged, standard program (DN 40–1200, PN 3.5–40 bar)

Expansion joints — types, manufacture, testing and documentation

Materials cross-reference (JUS · DIN · EN · ASTM)
